Detailed Product Description
| Sensor: |
1/4" Type 960H CCD |
Total Pixels: |
1020 (H) X 596 (V) 600K |
| Signal System: |
PAL |
Video Output: |
1.0Vp-p (75 Ohms, Composite Video) |
| Optical Zoom: |
23x |
Dimension: |
46(W) X 53.6(H) X 88(D) Mm |
| Weight: |
250G |
|
|

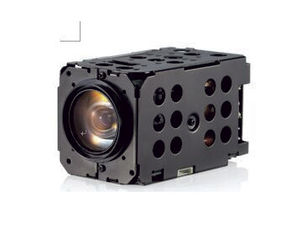

700TVL CCD Color Camera Module Double Filter CNB ZCF-51Z23FS 23X
CNB ZCF-51Z23FS Function :
* 5 area 2 level backlight compensation;
* Manual/auto-exposure mode (AE);
* Color to black and white, time delay switch function;
* WDR (wide dynamic range) function;
* Color to black and white, filter external synchronization;
* 256 area Exposure of independent operation, Strong image effects;
* Image flipping, rotating, mirroring;
* Intelligent analysis of the dynamic object detection alarm;
* Privacy block functionality;
* 3D digital noise reduction function;
* Focusing time correction function;
* Chinese and English menu.
CNB ZCF-51Z23FS Specification:
| Model |
ZCF-51Z23FS |
|
Signal system
|
PAL
|
|
Scanning mode
|
2:1 interlaced
|
|
Scanning frequency (horizontal)
|
15.625kHz |
|
Scanning frequency (vertical)
|
50Hz |
| Image Sensor |
1/4" Type 960H CCD |
|
Synchronization system
|
Internal sync/Genlock
|
| Total pixels |
1020 (H) x 596 (V) 600K |
|
Effective pixels
|
976 (H) x 582 (V) 568K |
|
Horizontal resolution
|
700 TV Lines Color, 750TV Lines black and white
|
|
Video output
|
1.0Vp-p (75 ohms, composite video)
|
|
Signal to noise ratio (s/n)
|
More than 50dB (AGC Off)
|
|
Digital Zoom
|
12x |
| Lens |
23x Zoom Video AF (F1.6, f=3.6~82.8mm) |
|
Minimum illumination
|
Color 0.1Lux (30IRE), black and white 0.01Lux (30IRE), DSS ON 0.00031Lux
|
|
Color to black and white
|
Auto/day/night/EXT CDS
|
|
Privacy shade
|
ON/OFF/8 area
|
|
3D digital noise reduction
|
2D/3D/close
|
|
Automatic gain
|
ON/OFF |
| WDR |
Medium/high/low/off
|
|
Backlight compensation
|
Auto/normal
|
|
Frame accumulation
|
ON/OFF(2FLD-512FLD) |
|
The electronic shutter speed
|
1/50 ~ 1/10,000s (Manual, 8 steps) |
|
E-slow door
|
2FLD~512FLD/OFF |
|
OSD menu
|
Multi-language OSD (default: Chinese/English)
|
|
Image flip/mirror feature
|
ON/OFF/vertical/horizontal
|
|
Input/output control
|
9 Pin Flat Cable |
|
Supply voltage
|
12VDC (9V~15V) |
|
Power consumption
|
Max. 4 W |
| Size |
46(W) x 53.6(H) x 88(D) mm |
|
Weight (net)
|
Approx.250g |
